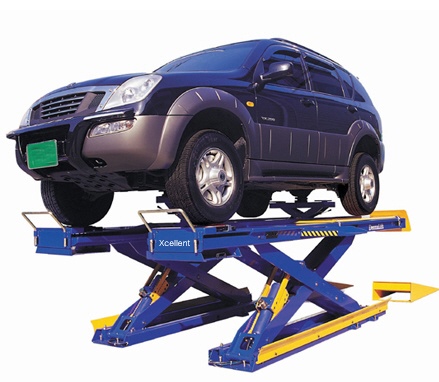

XL-5500 Alignment scissors
|

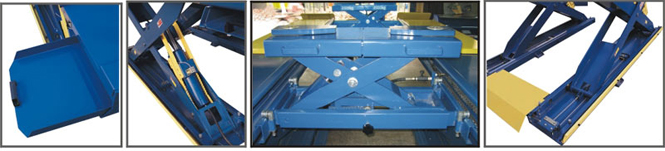

Tool Box Pneumatic Jacking Beam Wire
Rope Safety Locking Synchronising System XL-5500 Alignment
scissors
- Adopted adjustable tire stopper
- Adopted fron wheel turn table
- Adopted wire rope synchronising control
- Wired remote control

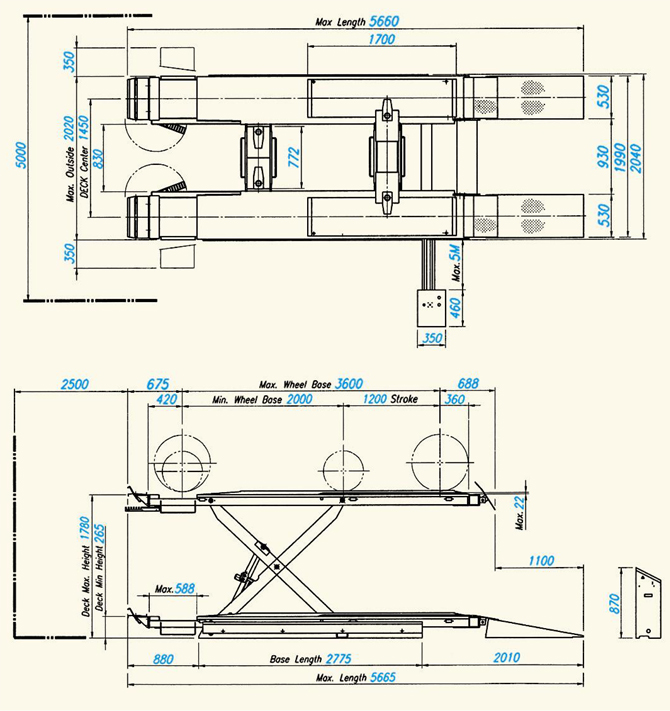

- Long run-way for 3D wheel alignment(4,380mm)
|
| Specification
|
| Model |
XL-5500 |
| Type |
Alignment scissors
|
| Capacity |
Main 4,000kg |
| |
Jack 2,000kg |
| Lifting Time |
Main 60~70sec |
| |
Jack 5~15sec |
| Lifting Height |
Main 1,780mm |
| |
Jack 455mm |
| Standard Motor |
1P |
2.5HPx4Px220Vx60Hz |
| |
3P |
2HPx4Px220/380Vx60Hz |
| Net Weight |
1,950kg |
|
|
|
|
