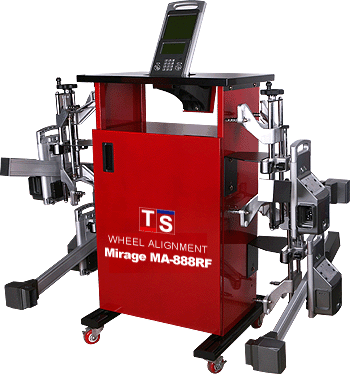

Mirage MA-888
 |
| ▶
It provide wireless communication RF
type. |
| ▶
It provides 3D animated screens of
adjustment area for all the latest automobile
models around the world. |
| ▶
Ultra-light head and clamp allows convenient
measurements without RUN-OUT procedure. |
| ▶
A complete set of "HELP"
contents, so helpful that you won't need a
user's manual. |
|
|
|
|
|
|
CPU |
Intel Pentium IV Processor |
|
Monitor
|
17" High-Resolution LCD Monitor(Basic) |
|
Printer |
HP DESKJET COLOR |
|
O/S |
WINDOWS XP |
|
Measurement |
8-Sensors Type |
|
Sensor |
PSD Sensor With High Quality Analysis |
|
Communication System |
Wireless |
|
Power Supply |
220V EKSTKD , 50 / 60HZ 400W |
|
Measuring Head Power Supply |
6V / 800mAh |
|
Battery Life After Recharging |
Minimum of 8 Hours |
|
|
| |
|
|
Measurement Analysis |
Toe |
0.02mm |
| Camber |
0.01˚ |
Caster
|
0.01˚ |
Maximum Caster Swing
Toe-In/Toe-Out Angle |
±18˚ |
|
Measurement Range |
Partial Toe |
±3˚ |
| Overall Toe |
±6˚ |
| Camber |
±15˚ |
| Caster |
±30˚ |
| King Pin |
±30˚ |
| Thrust, Set-Back
Angle |
±3˚ |
| Wheel Size |
13" ~ 21"
|
|
Screen Display |
mm,
100 minutes, 60 minutes, inch |
|
|
<Car model
select screen>
 |
<Customer
management screen>
 |
Convenient maker
selection and
two-time model selection in addition
to the Auto-Turn-Page function
for fast shift |
Any saved data maybe
found by car mode,
telephone numbers, customer name and
all search mode and redily printed and deleted.
Also, all registered customers maybe directly
connected to measurement mode. |
<JACK UP screen>
 |
<New car register>
 |
The whole JACK-UP
is affordable to be
available in shop type x lift in addition
to the world-first 2-column lift. |
100 makers and 8000
worldwide models are
collected, and about 40000 car data
maybe registered. |
<Configuration screen>
 |
|
| System setting and
calibration mode |
|
|
|
|
|
|
