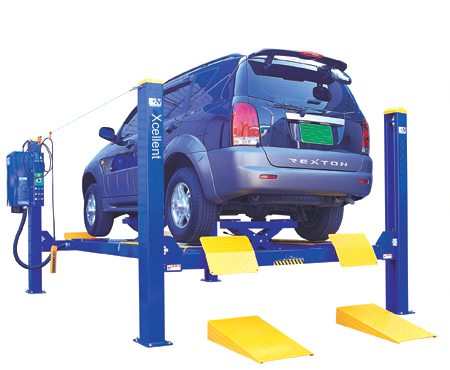

XL-4000 4-post
|
4-POST LIFT
- Electric actuated safety locking
- Individual control switch on each bridging jack
- Hydraulic two-level jack
- Two wire rope
|
| Specification
|
| Model |
XL-4000 |
| Capacity |
Main 4,000kg |
| |
Jack 2,000kg |
| Max. Lifting Height |
Main 1,750mm |
| |
Jack 455mm |
| Overall Height |
2,215mm |

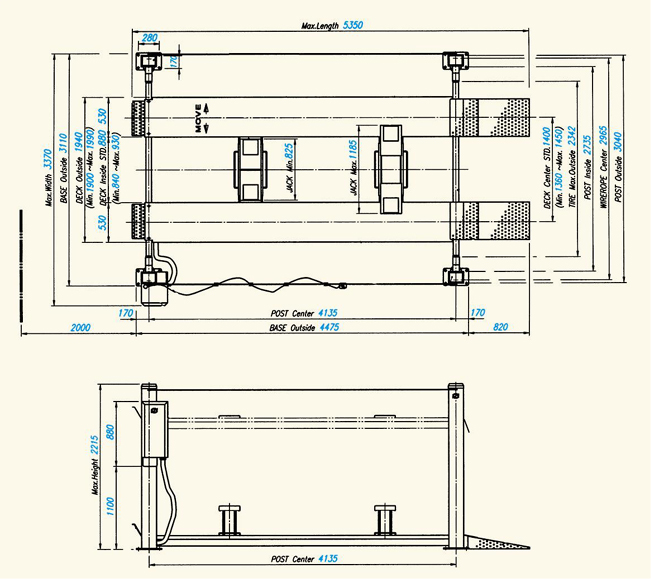

| Dimension |
Main 3,370mm |
| |
Jack 880~1,550mm |
| Lifting Time |
Main 50sec |
| |
Jack 8sec |
| Standard Motor |
1P |
2.5HPx4P x220V/60Hz |
| |
3P |
2HPx4Px220V/380Vx60Hz |
| Net Weight |
1,440kg |
|
|
