Convenient operation & extraordinary measuring accuracy .
▶
Solidly made goods & convenient to carry.
▶
Convenient operation for one person with cable remote controller.
▶
Convenient to use due to all functions are automatic except for transfferation of measuring paper.
▶
Convenient measurement by adopting computerized ZERO Calibration function.

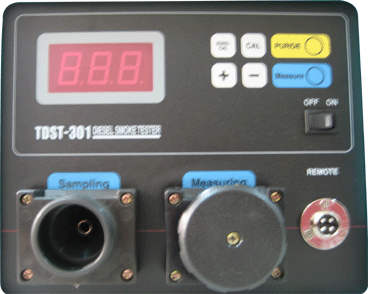

TDST - 301
Input Power
AC 220V(200 - 240V) , 60HZ
Preheating Time
Within 3 minutes
Display Method
Digital Mode
Tolerance
± 2 %
Mesurement Method
Filter paper infrared reflection
Response Speed
Response up to 90% within 2 seconds
Reality
± 2% of Maximum Scale
Repeat
± 1% of Maximum Scale
Scope of measurement
0 ~ 100 %
Density
Minimum scale : 0.1%
Induction time
1.4 sec ± 0.22 sec
Filter paper size
8 + 0.24 ㎠
Scope of Temperature
- 10℃ - 40℃
Proper air pressure
4 - 5Kg / ㎠
Filter paper
(circle) 5. A type
