  • TSCT-750L / Wheel alignment

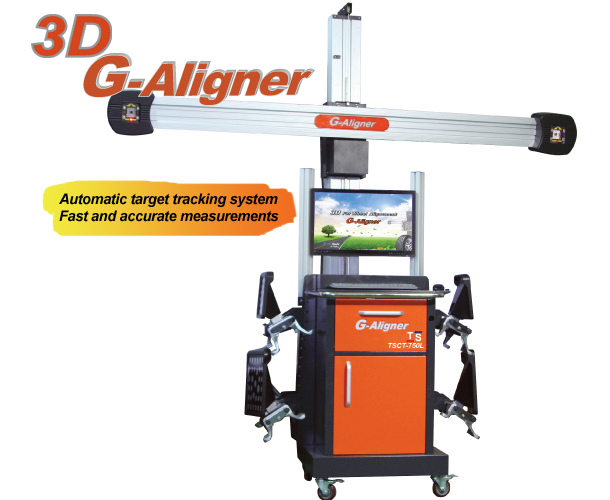

    3D G-Aligner TSCT-750L (L-type) Automatic Type
  • automatic target tracking system
  • The camera can automatically adjust the height of the lift type
  • Fast and accurate measurements
  • Excellent display advertising effectiveness
  • 25-inch widescreen monitor, apply
  • Portable cabinet mount
  • 4-wheel rolling simultaneously correction method
  • Wireless image target
  • Lift the horizontal does not depend on the measure
  • Accurate reproduction
  • Periodic zeroing required
  • Wireless remote control applies




    Features
  • 3D G-Aligner high-precision, high-quality camera target recognition system.
  • camber -15 ° ~ 15 °, -28 ° ~ 28 ° to the caster measurement.
  • Lift the target increases, the ability to adjust the height of the camera.
  • Lift the horizontal measurement is accurate even at loggerheads.
  • Monitor progress of work without having to look at the LED lamps can work measurement.
  • After adjusting caster levels to confirm the procedure to measure the real-time without repeated measurements.
  • Apply unique digital video camera technology.
  • Intelligent hwileol liner.
  • Power supply: 230V, 50-60Hz.
  • Periodic calibration target measurement method unnecessary.
  • Easy to use wireless manner.
  • Measure 3 hours 1 minute 30 seconds to complete all measurements in a matter of minutes.
  • High-resolution camera with two broad angle measurement.
  • 4 single target (horizontal unnecessarily each 33 round points) using measurements.
  • Wide color LCD monitor attached.

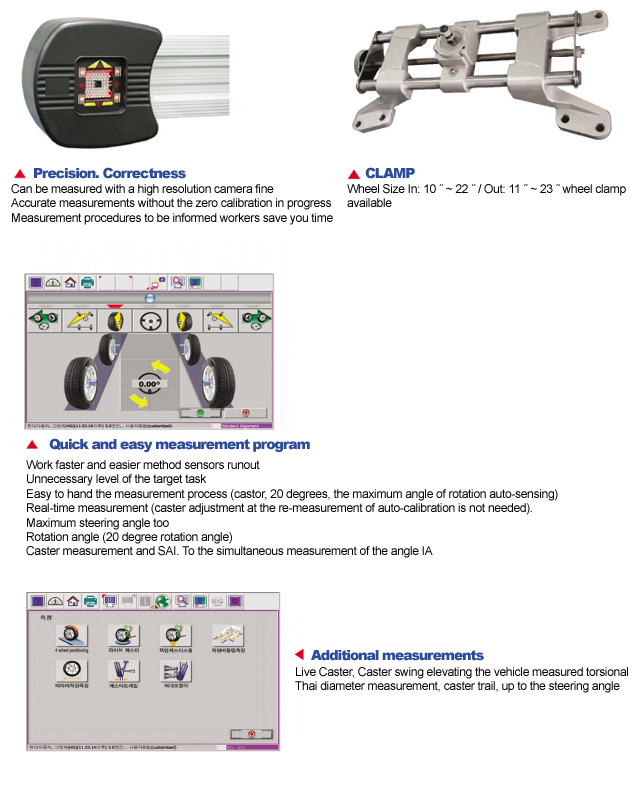

  • Wheel Size In: 10 ˝ ~ 22 ˝ / Out: 11 ˝ ~ 23 ˝ wheel clamp available.

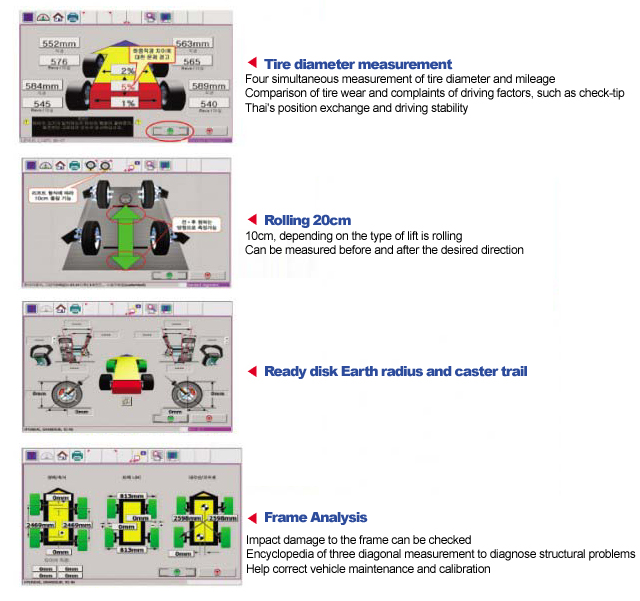

  • 3D Thai diameter measurement, setbacks and torsion can be measured.
  • Advanced control the height of the monitor cabinet, movable type (CT-750L).
  • does not increase the lift from the ground state of the measuring process is the alignment (CT-750, CT-750L).
  • The vehicle in any position, even if the target of the camera automatically tracks the position of the control (CT-750L.)
