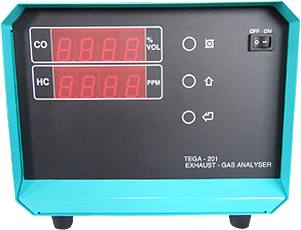

 - TEGA-201 & TS-4000 / Exhaust gas analyzer
Exhaust Gas Analyzer Specifications
| Item |
Specifications |
| Model |
TEGA-201,TS-4000(5000) |
| Measurement items |
CO,HC,CO2,O2,Excess air ratio,AFR,Nox(Optional) |
| Measurement principles |
CO,HC,CO2:NDIR |
| O2,nox:Electric Formula |
| Range |
CO: |
HC: |
Co2: |
O2: |
| 0-10% Vol |
0-9999 |
0~20% |
0~25% |
| |
ppm |
Vol |
Vol |
| Graduations |
CO:0.01% |
HC:1ppm |
Co2:0.1% |
O2:0.01% |
| Repeatability |
2%/F.S |
| O2 sensor life |
1 year |
| Show the way |
Digital |
| Calibration method |
Zero Calibration: automatic calibration method |
| Span Calibration: span gas automatic calibration
method using |
| HC Span Gas Set the rate |
Propane x 0.498 |
| Response rate |
10 seconds to 90% response |
| Warm-up time |
I'm re-energized in the case of 10 minutes 5 minutes climate |
| Pump flow |
1.8L/min |
| Environment |
Temperature:-10~40, Humidity 90% Below |
| Printer Features |
option |
| Transfer Status |
option |
| Power |
Ac 220V 50/60Hz |
| Size |
330X220X170 |
| Weight |
4kg |
Feature
- Separate each measurement without complicated procedures
without having to press the button for automatic continuous
measurement can be
- a built-in pressure sensor probe and the tube can check
the status of the leak, and can tell when to replace the
filter.
- Measurement sample cells and each part is equipped with
sensors to detect the temperature and constant temperature
control system to maintain constant temperature and
Is managed at all times to provide a certain measure.
- built-in auto-purge function measured within 30 minutes
of a fuzzy measure if it does not exist to conduct ecological
and atmospheric measurements
Switches.
- Automatic zero adjustment function is built into the base
always tells the correct measure.
- The printer features built-in by default always easy measurement
results can be printed.
- PC monitor, a computer program can be used in conjunction
with. (OPTIONAL)
|
|
|
